T8 Series
T8 LED Tube, Type A+B
Representative model: HYA-T8-4FT-5W5CCT-AB
Dual-mode 4FT tube that runs with or without a ballast, with 25-in-1 wattage and color temperature selection for fast fluorescent conversions.
ULDLC
- Wattage
- 12W / 15W / 18W / 20W / 22W
- Lumen output
- Selectable by wattage tier
- Color temperature
- 3500K / 4000K / 5000K / 5700K / 6500K
- Input voltage
- Type A ballast-compatible / Type B line voltage
- CRI
- >80
- Ingress protection
- IP20 (indoor)
- Dimming
- Dimmable with compatible ballast
- Rated life
- 50,000 hours
Features
- 25-in-1 configuration on a single SKU
- >140° beam angle
- Installs in existing troffers and strips
- Ballast bypass mode improves system efficiency
Options & accessories
- Type A plug-and-play
- Type B ballast bypass

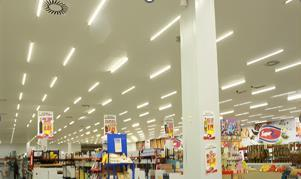

Recommended applications
Ordering guide
| Model | Size | Watt | Output |
|---|---|---|---|
| HYA-T8-4FT-5W5CCT-AB | 4FT | 12–22W | Per tier |
Data taken from the AVILUX manufacturer specification sheet. Download the PDF above for dimensions, package information and sensor option tables.
Quote the T8 Series
Send us your fixture schedule, drawings or a simple room count. We reply with model recommendations, photometrics and pricing.
