LHB Series
Linear LED High Bay
Representative model: HY-LHB-220W2FT-H-3W3CCT
Two- and four-foot linear high bays with three selectable wattages per model and a frosted or prismatic PMMA lens for aisle-friendly distribution.
DLCULDamp location
- Wattage
- 70W–300W across models
- Lumen output
- Selectable per wattage tier
- Color temperature
- 3500K / 4000K / 5000K selectable
- Input voltage
- AC 120–277V
- CRI
- >80
- Ingress protection
- IP20 (damp location)
- Dimming
- 0–10V
- Rated life
- L70 > 50,000 hours
Features
- 110° beam angle for rack aisles
- Chain, surface or pendant mounting
- Bi-level and daylight harvesting sensor options
- DLC listed for utility rebates
Options & accessories
- ANT-5-4T / ANT-6-4T / HD09VR-PH-1 sensors (max 40 ft)
- HD09VR-MH-1 microwave sensor (max 50 ft)
- HD09VR-PHB-1 Bluetooth sensor

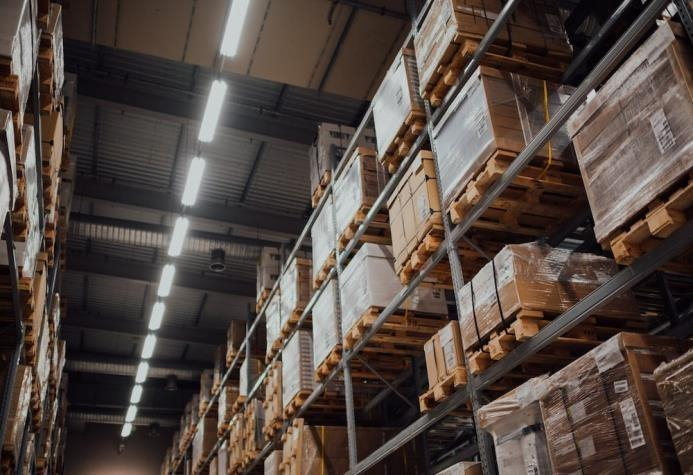

Recommended applications
Ordering guide
| Model | Size | Watt | Output |
|---|---|---|---|
| HY-LHB-110W2FT-H-3W3CCT | 2FT | 110/90/70W | DLC# S-DJZ8QX |
| HY-LHB-160W2FT-H-3W3CCT | 2FT | 160/140/120W | DLC# S-C5VZX9 |
| HY-LHB-220W2FT-H-3W3CCT | 2FT | 220/190/160W | DLC# S-7DSCHE |
| HY-LHB-220W4FT-H-3W3CCT | 4FT | 220/190/160W | DLC# S-FESPTK |
| HY-LHB-300W4FT-H-3W3CCT | 4FT | 300/260/220W | DLC# S-MLXD9C |
Data taken from the AVILUX manufacturer specification sheet. Download the PDF above for dimensions, package information and sensor option tables.
