UFO02 Series
UFO LED High Bay
Representative model: HY-UFO-240W-110-H-3W3CCT
DLC Premium round high bay with field-selectable wattage and CCT, delivering up to 140 LPW for 250W–1500W metal halide replacement.
DLC PremiumULIP65
- Wattage
- 150W / 240W / 300W selectable tiers
- Lumen output
- Up to 140 LPW
- Color temperature
- 3000K / 4000K / 5000K selectable
- Input voltage
- 110–277 VAC
- CRI
- 80+
- Ingress protection
- IP65
- Dimming
- 0–10V
- Rated life
- L70 > 50,000 hours
Features
- Replaces 250W–1500W metal halide
- Wattage and CCT adjustable on the fixture
- Die-cast aluminum heat sink for long thermal life
- 5-year limited warranty
Options & accessories
- MS: Motion sensor
- BT: Bluetooth sensor

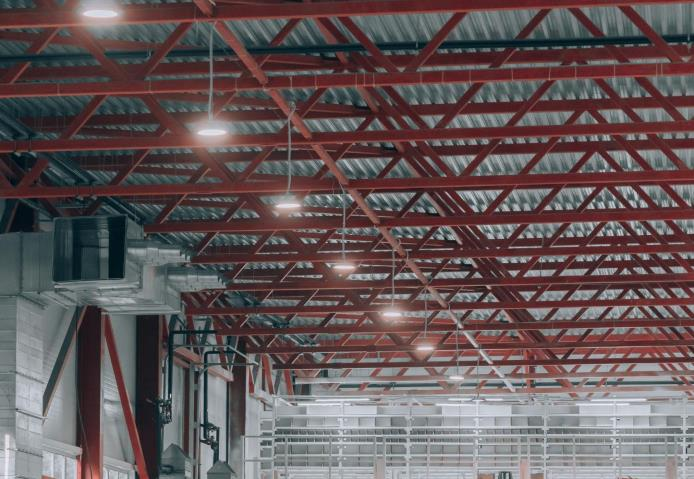

Recommended applications
Ordering guide
| Model | Size | Watt | Output |
|---|---|---|---|
| HY-UFO-150W-110-H-3W3CCT | UFO | 150W tier | DLC# S-BFRCP4 |
| HY-UFO-240W-110-H-3W3CCT | UFO | 240W tier | DLC# S-8R7D64 |
| HY-UFO-300W-110-H-3W3CCT | UFO | 300W tier | DLC# S-BWUNSK |
Data taken from the AVILUX manufacturer specification sheet. Download the PDF above for dimensions, package information and sensor option tables.
