DR Series
Double Ring Flush Mount Ceiling Light
Representative model: HY-DR12-16WCCT
12", 14" and 16" flush mount ceiling luminaire with five selectable CCTs, offered in standard, motion sensor and emergency-ready versions.
- Wattage
- 16W / 22W / 26W
- Lumen output
- By size and CCT
- Color temperature
- 2700K–5000K or 2700K–6500K selectable
- Input voltage
- AC 120V
- CRI
- 80+
- Ingress protection
- IP20 (indoor)
- Dimming
- Non-dim standard
- Rated life
- L70 > 50,000 hours
Features
- 110°–120° beam angle
- Emergency variant: ≥24h charge, 1.5h runtime
- Low-profile double ring optic
- Corridor, lobby and residential-grade common areas
Options & accessories
- MS: On/off motion sensor
- EM: Emergency backup driver ready

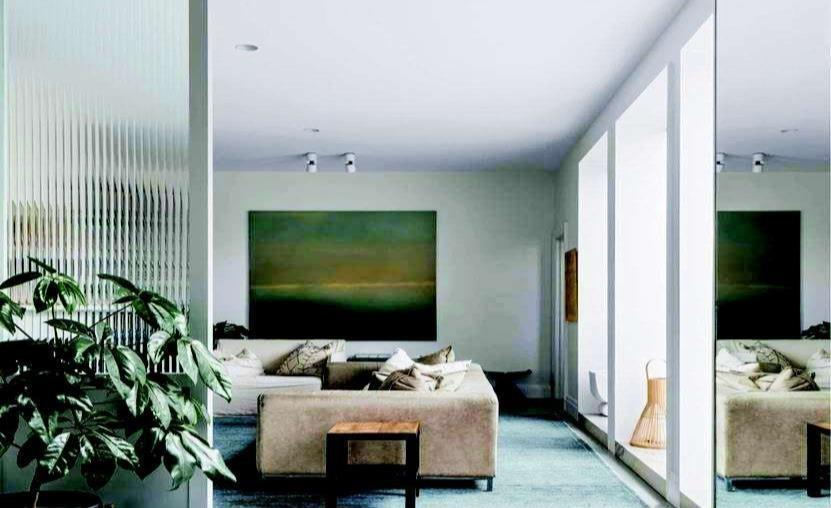

Recommended applications
Ordering guide
| Model | Size | Watt | Output |
|---|---|---|---|
| HY-DR12-16WCCT | 12" | 16W | Selectable |
| HY-DR14-22WCCT | 14" | 22W | Selectable |
| HY-DR16-26WCCT | 16" | 26W | Selectable |
Data taken from the AVILUX manufacturer specification sheet. Download the PDF above for dimensions, package information and sensor option tables.
