FL02 Series
LED Flood Light
Representative model: HYA-FL02-50/40/30W-H-3CCT

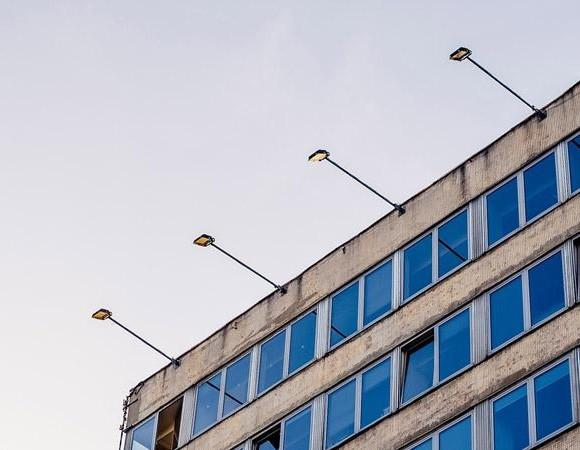

Compact selectable-wattage flood light with a natural-convection heat sink, DLC listed for facade, signage and yard illumination.
DLC (S-1YHBDE)ULIP65
- Wattage
- 30W / 40W / 50W selectable
- Lumen output
- 6,537 lm @ 50W
- Color temperature
- 3000K / 4000K / 5000K selectable
- Input voltage
- AC 120–277V 50/60Hz
- CRI
- Ra > 80
- Ingress protection
- IP65
- Dimming
- Non-dim standard
- Rated life
- L70 > 50,000 hours
Features
- Excellent replacement for legacy HID floods
- Adjustable knuckle for precise aiming
- Die-cast housing with passive cooling
- Wet location rated
Options & accessories
- Knuckle mount
- Photocell ready
Recommended applications
Ordering guide
| Model | Size | Watt | Output |
|---|---|---|---|
| HYA-FL02-30W-H-3CCT | Compact | 30W | Per tier |
| HYA-FL02-40W-H-3CCT | Compact | 40W | Per tier |
| HYA-FL02-50W-H-3CCT | Compact | 50W | 6,537 lm |
Data taken from the AVILUX manufacturer specification sheet. Download the PDF above for dimensions, package information and sensor option tables.
