MWP Series
Multi-Purpose LED Wall Pack
Representative model: HYA-MWP-962-3W3CCT
DLC Premium wall pack with selectable lumen output and CCT for building perimeters, loading docks and entryways.
DLC Premium (S-K4BGAD)ULIP65
- Wattage
- 3-watt selectable
- Lumen output
- 1,800 / 2,400 / 3,200 lm selectable
- Color temperature
- 3000K / 4000K / 5000K selectable
- Input voltage
- AC 100–277V 50/60Hz
- CRI
- Ra > 80
- Ingress protection
- IP65
- Dimming
- 0–10V
- Rated life
- L70 > 50,000 hours
Features
- Selectable lumens and CCT on one SKU
- Wet location rated die-cast housing
- Rebate-eligible DLC Premium listing
- Uniform perimeter illumination
Options & accessories
- Photocell
- Emergency backup

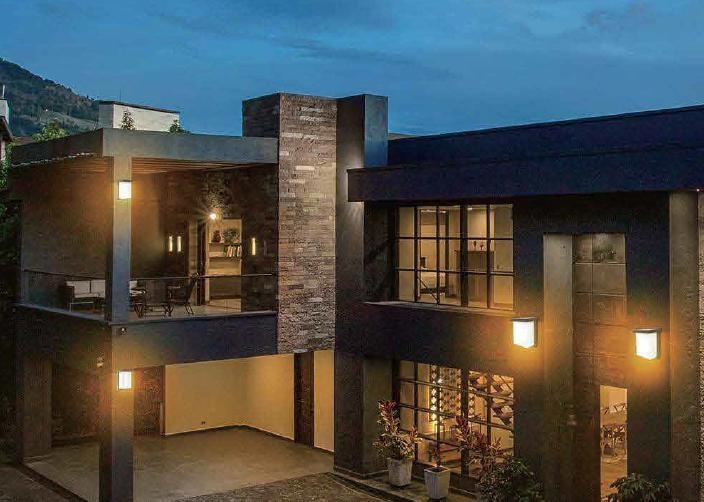

Recommended applications
Ordering guide
| Model | Size | Watt | Output |
|---|---|---|---|
| HYA-MWP-962-3W3CCT | Standard | 3W selectable | 1,800–3,200 lm |
Data taken from the AVILUX manufacturer specification sheet. Download the PDF above for dimensions, package information and sensor option tables.
