MWP02 Series
Architectural LED Wall Pack
Representative model: HYA-MWP02-1454-H-3W3CCT
Slim architectural wall pack in two form factors with 125° distribution and optional PTC photocell for dusk-to-dawn operation.
DLCULIP65
- Wattage
- 3-watt selectable
- Lumen output
- 1,742 lm (0864) · 2,619 lm (1454)
- Color temperature
- 3000K / 4000K / 5000K selectable
- Input voltage
- AC 100–277V 50/60Hz
- CRI
- Ra > 80
- Ingress protection
- IP65
- Dimming
- 0–10V
- Rated life
- L70 > 50,000 hours
Features
- 125° beam angle
- Two housings: W6"xH8"xD4" and W5"xH14"xD4"
- Clean architectural face for storefronts
- Wet location rated
Options & accessories
- PTC: Photocell

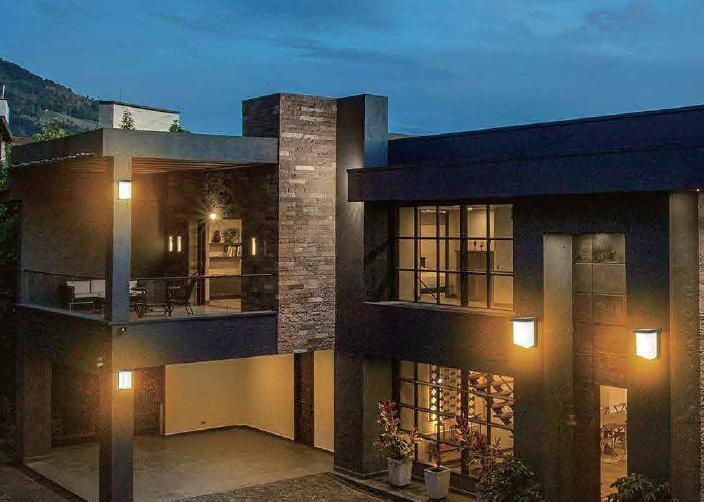

Recommended applications
Ordering guide
| Model | Size | Watt | Output |
|---|---|---|---|
| HYA-MWP02-0864-H-3W3CCT(PTC) | W6"xH8"xD4" | 3W selectable | 1,742 lm |
| HYA-MWP02-1454-H-3W3CCT(PTC) | W5"xH14"xD4" | 3W selectable | 2,619 lm |
Data taken from the AVILUX manufacturer specification sheet. Download the PDF above for dimensions, package information and sensor option tables.
