SMD(MS) Series
Surface Mount Downlight with Motion Sensor
Representative model: SMD-R5-10W-CCT(MS)
5" and 7" surface mount downlight with integrated motion detection and ambient light sensing; the 7" model pairs with an emergency driver.
- Wattage
- 10W (5") / 15W (7")
- Lumen output
- By size
- Color temperature
- 2700K–5000K selectable (5 CCT)
- Input voltage
- 120 VAC
- CRI
- ≥80
- Ingress protection
- IP20 (indoor)
- Dimming
- Sensor-controlled
- Rated life
- L70 > 50,000 hours
Features
- Built-in motion and ambient light sensing
- 120° beam angle
- Ideal for corridors, restrooms and storage rooms
- Surface mount, no can required
Options & accessories
- Emergency driver (7" model)

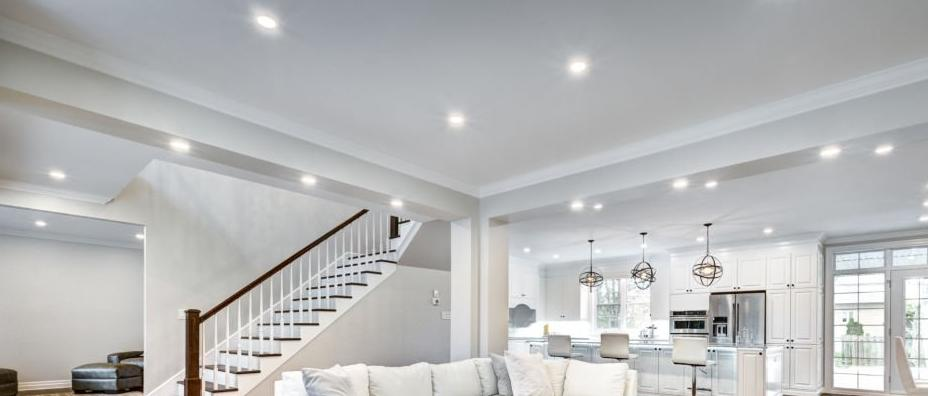

Recommended applications
Ordering guide
| Model | Size | Watt | Output |
|---|---|---|---|
| SMD-R5-10W-CCT(MS) | 5" | 10W | Selectable |
| SMD-R7-15W-CCT(MS) | 7" | 15W | Selectable |
Data taken from the AVILUX manufacturer specification sheet. Download the PDF above for dimensions, package information and sensor option tables.
