LS100 Series
LED Strip & Stairwell Fixture
Representative model: HY-4FT-LS100-3W3CCT
Linkable low-profile strip fixture with PMMA lens, selectable wattage and CCT, and optional motion sensor or emergency driver for stairwells and back-of-house.
- Wattage
- 20W–80W selectable by length
- Lumen output
- 2,600–10,400 lm
- Color temperature
- 3000K / 4000K / 5000K selectable
- Input voltage
- 120–277V
- CRI
- 80+
- Ingress protection
- Damp location
- Dimming
- 0–10V
- Rated life
- L70 > 50,000 hours
Features
- Linkable with included wire harness kit
- J-box mounting plate and suspension kit included
- Aluminum heatsink, white finish body
- Working temperature -4°F to +104°F
Options & accessories
- MS: Motion sensor
- EM: Emergency driver (≥1.5H)

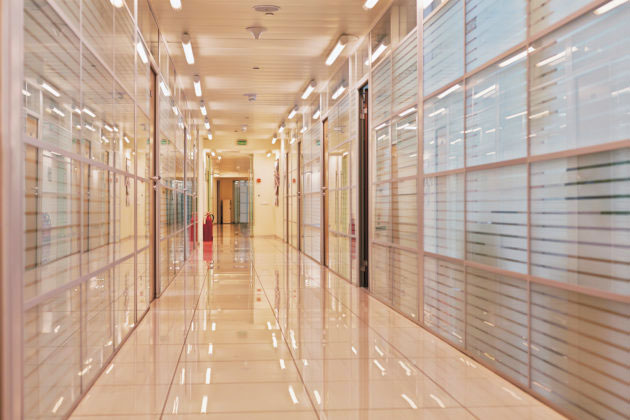

Recommended applications
Ordering guide
| Model | Size | Watt | Output |
|---|---|---|---|
| HY-2FT-LS100-20W-3CCT | 2FT | 20W | 2,600 lm |
| HY-4FT-LS100-3W3CCT | 4FT | 20/30/40W | 2,600 / 3,900 / 5,200 lm |
| HY-8FT-LS100-3W3CCT | 8FT | 40/50/60W | 5,200 / 6,500 / 7,800 lm |
| HY-8FT-LS100-H-3W3CCT | 8FT | 40/60/80W | 5,200 / 7,800 / 10,400 lm |
Data taken from the AVILUX manufacturer specification sheet. Download the PDF above for dimensions, package information and sensor option tables.
