LUD Series

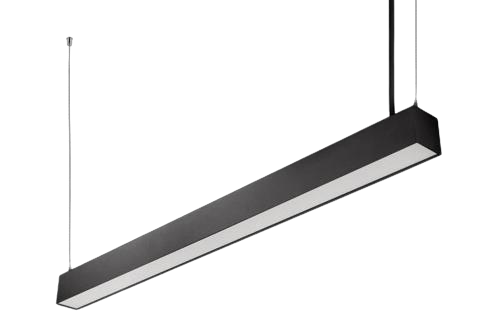

Linear Up/Down Suspended Fixture
Representative model: HY-4FT-LUD-50W-3CCT
Architectural suspended linear with independently controlled up and down LED boards, plus L, T and X connector modules for continuous runs.
- Wattage
- 25W / 50W / 100W by length
- Lumen output
- Selectable by wattage
- Color temperature
- 3000K / 4000K / 5000K selectable
- Input voltage
- 120–277V
- CRI
- 80+
- Ingress protection
- IP20 (indoor)
- Dimming
- 0–10V
- Rated life
- L70 > 50,000 hours
Features
- Separate CCT control for top and bottom boards
- 100° beam angle, PF > 0.95
- Suspension kit and canopy included
- Continuous-run geometry for open offices
Options & accessories
- L / T / X connector modules
- Black or white finish

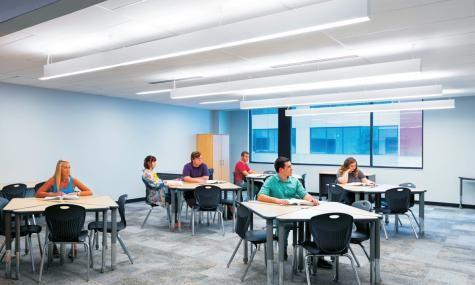

Recommended applications
Ordering guide
| Model | Size | Watt | Output |
|---|---|---|---|
| HY-2FT-LUD-25W-3CCT | 2FT | 25W | Per tier |
| HY-4FT-LUD-50W-3CCT | 4FT | 50W | Per tier |
| HY-8FT-LUD-100W-3CCT | 8FT | 100W | Per tier |
| HY-LUD-ACC-L-12W-CCT | L shape | 12W | Connector |
| HY-LUD-ACC-T-12W-CCT | T shape | 12W | Connector |
| HY-LUD-ACC-C-15W-CCT | X / cross | 15W | Connector |
Data taken from the AVILUX manufacturer specification sheet. Download the PDF above for dimensions, package information and sensor option tables.
