LS8060X Series
LED Strip Light, 5-Watt Selectable
Representative model: HYA-LS8060X-4FT-H-5WCCT
Five wattage and five CCT selections in a single UL damp-rated strip, with optional microwave sensor and 90-minute emergency driver.
- Wattage
- 5-watt selectable per length
- Lumen output
- Selectable output by wattage
- Color temperature
- 5 CCT selectable
- Input voltage
- 120–277V
- CRI
- 80+
- Ingress protection
- Damp location
- Dimming
- 0–10V
- Rated life
- L70 > 50,000 hours
Features
- 25-in-1 wattage and CCT selection
- 120° beam angle, PF > 0.9
- Connection plate available for continuous runs
- Integrated microwave sensor with adjustable settings
Options & accessories
- Microwave motion sensor
- Motion sensor + 90-minute emergency driver

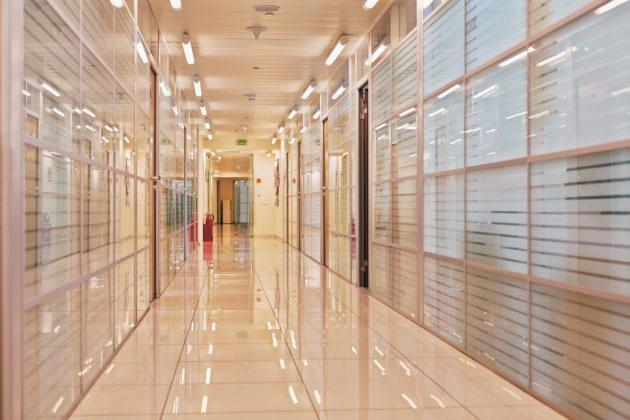

Recommended applications
Ordering guide
| Model | Size | Watt | Output |
|---|---|---|---|
| LS8060X-2FT-H-5WCCT | 2FT | Selectable | Per tier |
| LS8060X-4FT-H-5WCCT | 4FT | Selectable | Per tier |
| LS8060X-8FT-H-5WCCT | 8FT | Selectable | Per tier |
Data taken from the AVILUX manufacturer specification sheet. Download the PDF above for dimensions, package information and sensor option tables.
