VT Series
LED Vapor Tight
Representative model: HY-4FT-VT-H-3W3CCT

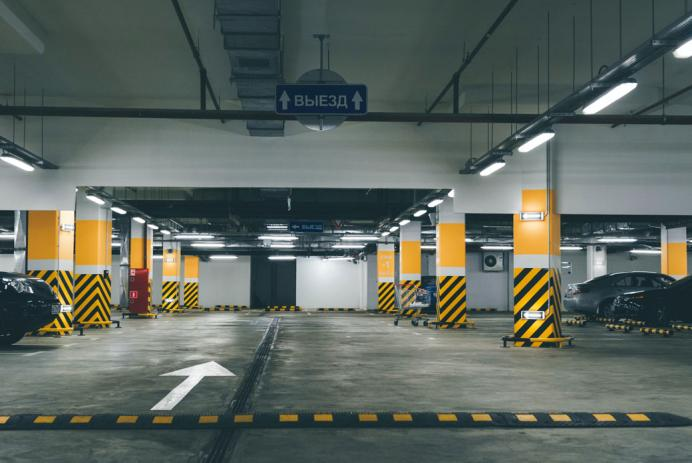

IP66 sealed linear fixture with clear ribbed cover and selectable wattage/CCT for wash bays, food processing, parking structures and cold storage.
- Wattage
- 20W–80W selectable
- Lumen output
- 2,600 lm (2FT) – 10,400 lm (8FT)
- Color temperature
- 3000K / 4000K / 5000K selectable
- Input voltage
- 120–277 VAC
- CRI
- 80+
- Ingress protection
- IP66
- Dimming
- Triac dimming 10%–100%
- Rated life
- L70 > 50,000 hours
Features
- Clear ribbed polycarbonate cover
- 120° beam angle, PF 0.9+
- Mounting brackets, anchors and strain relief included
- Durable sealed housing for washdown areas
Options & accessories
- MS: Microwave motion sensor
- EM: Emergency backup driver
Recommended applications
Ordering guide
| Model | Size | Watt | Output |
|---|---|---|---|
| HY-2FT-VT-H-3W3CCT | 2FT | 20W | 2,600 lm |
| HY-4FT-VT-H-3W3CCT | 4FT | 20/30/40W | 5,200 lm @ 40W |
| HY-8FT-VT-H-3W3CCT | 8FT | 40/60/80W | 10,400 lm @ 80W |
Data taken from the AVILUX manufacturer specification sheet. Download the PDF above for dimensions, package information and sensor option tables.
